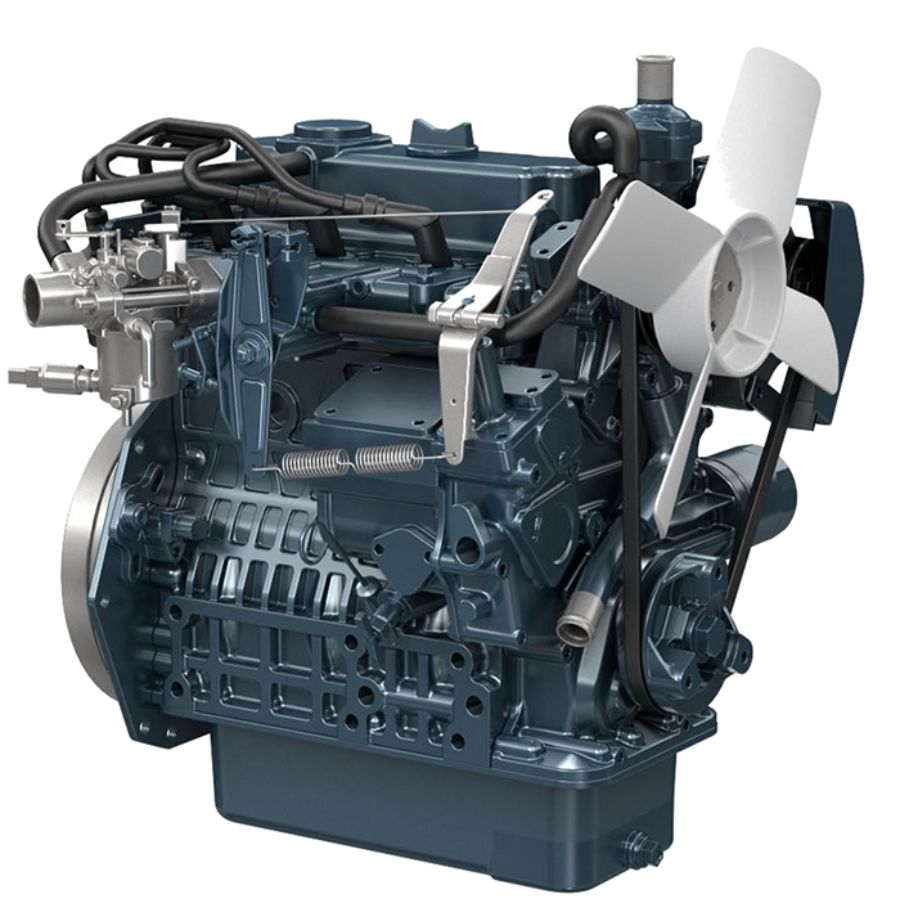

• Liquid Cooled Kubota 32.5 HP Engine – a reliable engine that now includes an extended three year manufacturer’s warranty
• Stainless Steel Multi-Stage Heat Exchanger – First, captures exhaust from blower and engine, second captures head from liquid cooled engine. Stainless steel construction allows for higher pressure setting and provides longer life.
• High Pressure Piston Chemical Pump – provides limited heat high pressure and lower maintenance than less expensive diaphragm pumps.
• Uncompromising Cleaning Solution Temperature – Best in class performance — single wand, dual wand, or hard surface cleaning. Unwavering heat from 230°-265°F under normal carpet cleaning condition. Industry leading performance at higher flow rates.
• Dominator Tri-Lobe Vacuum Blower creates up to 400+ CFM for better extraction and faster drying
• Patented Heat Control System – ADC Control Diverter manages heat for more consistent temperature and eliminates of dumping fresh water during cleaning/extraction.
• Cerakote Exhaust Coating –  retains more internal heat, less radiant heat (cooler van and extends life of surrounding belts, hoses, etc. ) and higher level of corrosion protection.
• Dual Wand Capable – plumbed and prepared for you to double your productivity when you
  need to!
• Patented Heat Control System – ADC Control Diverter manages heat for more consistent temperature delivery and virtually eliminates dumping fresh water during cleaning and water extraction.
• Quieter Performance – Opti Air Flow System and dual oil bath helical gear tri-lobe blower reduces noise resulting in the quietest machine in its class.
• Simplified Maintenance – “Arms Length” design and removable magnetic panels allow for easy access to crucial components and serviceable parts.

Power Plant:

• Engine: 32.5HP Kubota Liquid-Cooled Engine (3-cylinder OHV) with 3-year warranty
• Ignition: Keyless electronic start
• Fuel Consumption: 1.7 GPH at 300 PSI

Vacuum System:

• Blower: Dominator™ Tri-Lobe 4007 Blower with dual oil bath design
• Performance: 400+ CFM vacuum for faster drying

Solution System:

• Pump: General High Performance Piston High Pressure Solution Pump
• Flow: 4.0 GPM volume
• Pressure: Up to 2000 PSI heated pressure

Heating System:

• Type: Multi-Stage Stainless Steel Thermal Accumulation & Heat Exchanger System
• Temperature: 230°-265°F consistently

Physical Specifications:

• Dimensions (Console): 26″W × 39″H × 45″D
• Recovery Tank:

70 Gallon: 36 1/2” L X 10 1/2” W X 31” H

100 Gallon: 48 1/2” L X 14 1/2” W X 38 1/2”

• Weight: 900 lbs

The TITAN 575HP comes ready-to-work with:

• 32.5HP Kubota Liquid-Cooled Engine with 3-year manufacturer’s warranty
• General High Performance Piston High Pressure Solution Pump (4.0 GPM, Up to 2000 PSI)
• Dominator™ Tri-Lobe 4007 Blower (400+ CFM) with dual oil bath design
• 70 or 100 Gallon MaxxAir Recovery Tanks:
  A limonium, baked, or powder coat finish with stainless steel filter.
• Factory Dual Wand Plumbing with Two Solution Outlets
• ADC Heat Control Diverter Valve with patented heat control system
• 100′ x 1/4″ High-Performance Solution Hose
• 100′ x 2″ High-Performance Vacuum Hose
• 1.5″ Evolution Wand with 10 ft Wand Whip Line
• 50 ft Water Supply Line
• Runtime Hour Meter & Chemical Flow Meter/Control Valve (0-10 GPH)
• 5 Gallon Chemical Jug
• Chemical Jug Holder with vacuum hookups
• Remote Vacuum and dump hose manifold assembly
• Vacuum Gauge (0-30″ Hg) & Solution Pressure Gauge (0-2000 PSI)
• Keyless Electronic Ignition & Battery Box
• Pre-wired AWDS Switch & Pump Clutch Switch
• Diverter/Clutch Package for Flood Work

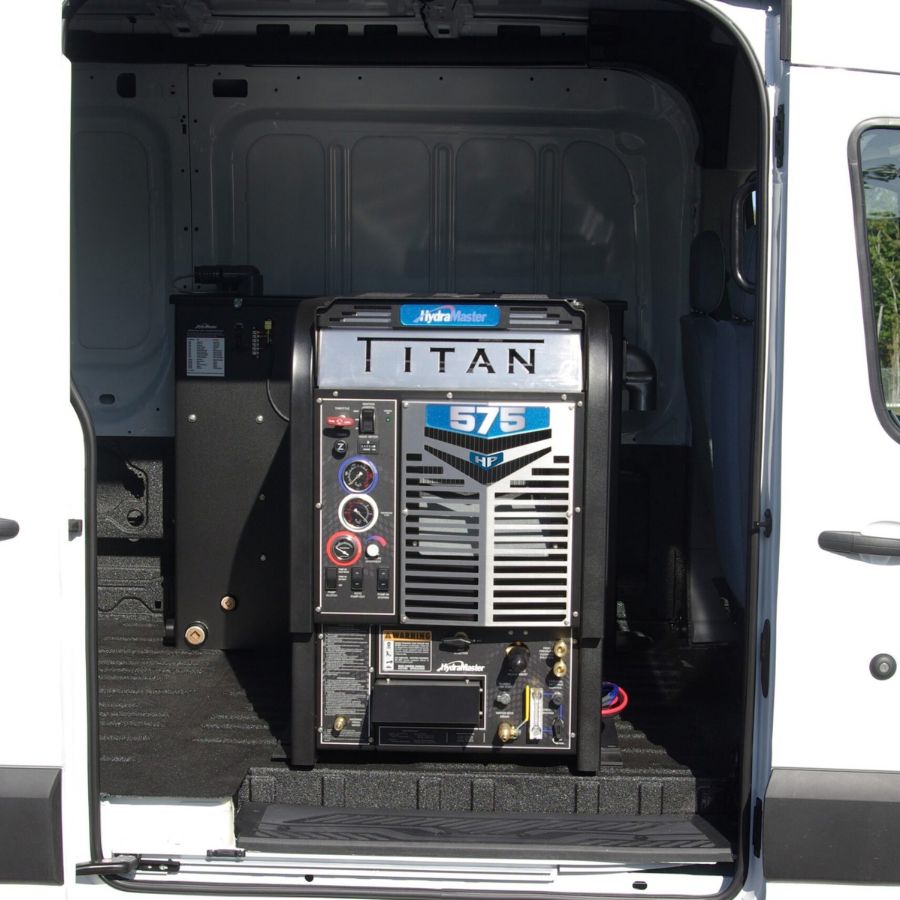

• Van Installation Kit
• Operation & Maintenance Manual Download Instructions
• ClubHydraMaster Leather Patch Ball Cap

Customize your TITAN 575HP with these professional upgrades:

• AWDS – Automatic Wastewater Disposal System – Pump-out convenience
• RX20 NEXTGEN Rotary Jet Extraction Wand – Advanced cleaning
• DriMaster Upholstery Tools – ClearVIEW and Series 3 options
• EVOLUTION Series Tools – 1.5”, 2”, Stair wand, Flood extraction wand. Hard Surface glide with Squeegee, for 1.5” wand.
• 85 Gallon Submount Freshwater Tank – Onboard water supply
• HydraCradle Freshwater Tank/Hose Reel Combo
• 200-300′ Capacity Hose Reels – Manual or electric
• Through Floor Exhaust Kit

Comprehensive 2-Year Warranty: 2 Year Full “bumper to bumper” coverage on other items with no “limited” exceptions. Special 3 year manufacturer warranty on Kubota engine
