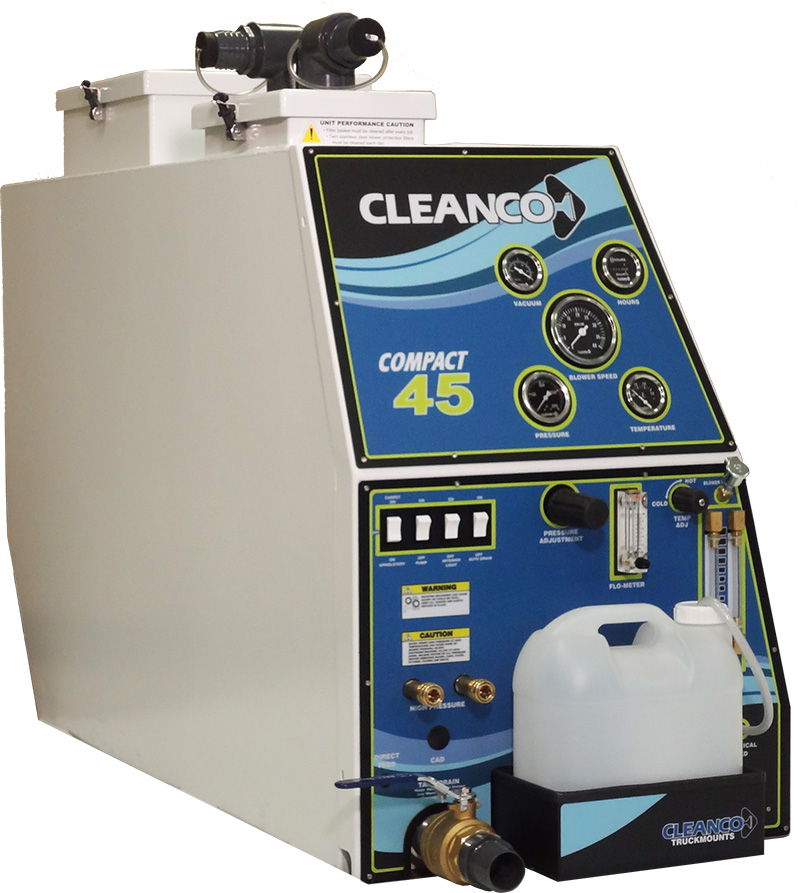

Cleanco Compact 45 Truck Mount
Item # ECS-215-CP45 P.T.I. Ch
- High Heat: up to 240°F
- Blower: Tuthill 4007 Trilobe Blower, 365 CFM
- Engine: Direct drive system powered by host vehicle engine
- Pump: 5CP Cat Pump, clutch activated, 1200 PSI
- Warranty: 5 Year Extend-A-Care Warranty protects your investment for years to come
- Call for a custom quote (720) 374-2375
$27,774.00
In Stock
Cleanco Compact 45 Truck Mount
High Heat: up to 240°F working water temperatures for exceptional cleaning results
Powerful Performance: 365 CFM for fast drying time, adjustable pressure up to 1200 PSI for upholstery, carpet and hard surface cleaning
Fuel Efficiency: the Electronic Throttle Module (ETM) regulates the van RPM reducing fuel consumption
Compact Design: 25″ is all that?s required, leaving the rest of your cargo space available for other equipment
Safety Features: Park Break Sensor, High Temperature Shutdown, Waste Tank Full Shutdown and Security Hose Ports to keep your equipment safe while you work
Warranty: 5 Year Extend-A-Care Warranty protects your investment for years to come
Manual for Cleanco Truckmount Compact 45
Features:
- High Heat: up to 240°F working water temperatures for exceptional cleaning results
- Powerful Performance: 365 CFM for fast drying time, adjustable pressure up to 1200 PSI for upholstery, carpet and hard surface cleaning
- Fuel Efficiency: the Electronic Throttle Module (ETM) regulates the van RPM reducing fuel consumption
- Compact Design: 25″ is all that’s required, leaving the rest of your cargo space available for other equipment
- Safety Features: Park Break Sensor, High Temperature Shutdown, Waste Tank Full Shutdown and Security Hose Ports to keep your equipment safe while you work
- Warranty: 5 Year Extend-A-Care Warranty protects your investment for years to come
Specifications
Engine: Direct drive system powered by host vehicle engine
Blower: Tuthill 4007 Trilobe Blower, 365 CFM, oil site lines & lube port on front panel
Filter System: Twin 2.5″ stainless steel blower protection filters, lift out lint basket
Pump: 5CP Cat Pump, clutch activated, 1200 PSI factory setting adjustable down to 50 PSI
Heat Method: Dual reverse flow heat exchangers, 200°F water temperature up to 240°F with optional Heat Max P.T.I. post heat system
Gauge Package: vacuum gauge, hour meter, blower speed tachometer, water pressure gauge, water temperature gauge
Waste Tank: 100 gallon powder coated 3/16 marine aluminum with ‘Flow Max’ unrestricted airflow design, sloped floor for easy draining, 120 gallon optional
Drain System: 2″ drain valve or optional external auto drain
Freshwater Tank: optional 125 gallon Aqua Reel tank
Dimensions: 58″ L x 25″ W x 37″ H
Weight: 656 lbs
Standard Equipment:
- Precision Balanced PTO Drive Shaft
- 100 Gallon Waste Tank
- Roots 45 Whispair DSL Vacuum Blower
- 5CP Clutch Activated Cat Pump
- Dual Coolant Heat Exchangers (205°F max)
- Dual Solutions Connections
- Dual 2″ Vacuum Connections
- Dual Speed Settings (carpet & upholstery)
- Quick Release Control Panel: gauge package, pressure & temperature adjustment, chemical flow meter, pre-wired auto drain, pump & blower oil site lines, blower lube port
- Titanium 2″ Truckmount Carpet Wand
- 100 ft x 2″ Vacuum Hose
- 100 ft High Temperature Solution Hose
- Chemical Jug & Holder
- Interior Light Package
- Park Break Sensor
- Security Hose Port
- High Temperature Shutdown
- Waste Tank Full Shutdown
- 5 Year Extend-A-Care Warranty
- Operation & Maintenance Manual
- Embroidered Cleanco Jacket
Van Requirements:
Chev and GMC Cargo Vans
- 2015 – 2020 Chev/GMC Cargo Van 6.0L V8 Gas
- 2021+ Chev/GMC Cargo Van 6.6L V8 Gas
NOTE: Not Compatible with Passenger Vans
Cleanco does not recommend installing Compact Direct Drive PTO units in a van that has excessive wear and tear or is older than specified above.
Cleanco requires a minimum van specification of ¾ ton for Compact Direct Drive PTO systems.
It is recommended that prior to the purchase of a van, the customer review the specifications of the van with an authorized Cleanco Distributor or contact Cleanco directly.
